Y-strainers

A Y Type Strainer (also known as a Y-Strainer) is a mechanical device used in pipelines to filter out debris and impurities from the flow of liquids, gases, or steam. It gets its name from its Y-shaped design, which allows for easy installation and maintenance.

CAST-IRON-Y-STRAINER

CAST IRON Y- STRAINER

  • BODY – CAST IRON
  • FILLTER – SS
  • PERFORATION – 3MM
  • SIZE – 50MM TO 100MM
  • END CONNECTION – FLANGE
  • TESTING PRESSURE – 24KG/CM2
  • WORKING PRESSURE – 16KG/CM2
  • Series: VEECO 310
  • PN 16

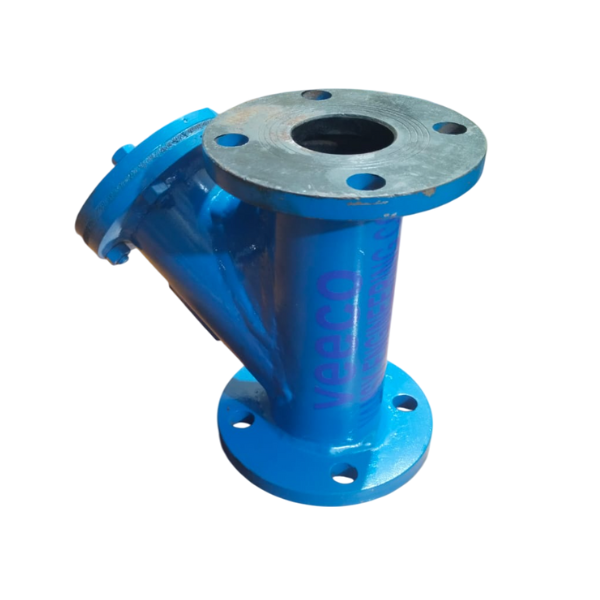

MS Y STRAINER PN 16

MS Y-STRAINER

  • BODYBODY – MILD STEEL
  • FILLTER – SS
  • PERFORATION – 3MM
  • SIZE – 25MM TO 600MM
  • END CONNECTION – FLANGE
  • TESTING PRESSURE – 24KG/CM2
  • WORKING PRESSURE – 16KG/CM2 – CAST IRON
  • Series: VEECO 180
  • PN 16
SS-BUCKET-STRAINER-PN-16

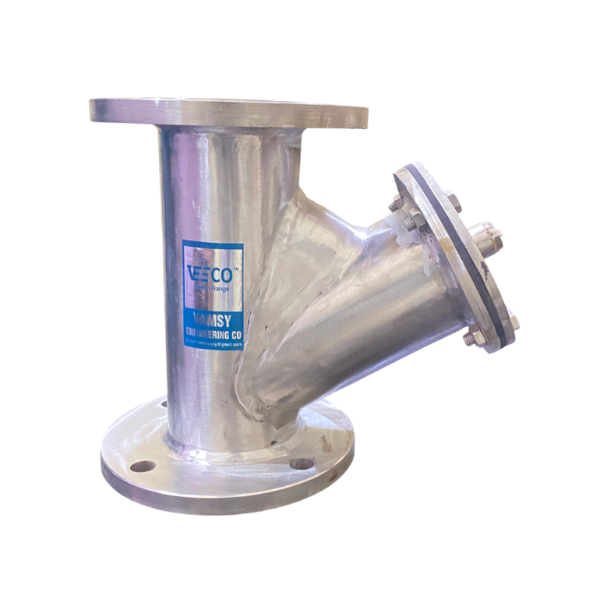

SS Y-STRAINER

  • BODY – STANLESS STEEL
  • FILLTER – SS
  • PERFORATION – 3MM
  • SIZE – 50MM TO 300MM
  • END CONNECTION – FLANGE
  • TESTING PRESSURE – 24KG/CM2
  • WORKING PRESSURE – 16KG/CM2
  • Series: VEECO 220
  • PN 16
FORGED-BRASS-Y-STRAINER-PN-16-300x289

Forged Brass Y-STRAINER

  • BODY – CAST IRON
  • FILLTER – SS
  • SIZE – 15MM TO 50MM
  • END CONNECTION – FEMALE SCD
  • Series: VEECO 513
  • PN 16

Key Features:

The strainer body is shaped like the letter “Y”.
One branch contains the straining element (mesh or perforated screen).
The other two are the inlet and outlet ports.
Removes solid particles such as rust, scale, and dirt from the fluid.
Protects equipment like pumps, valves, traps, and meters from damage.
Commonly made from cast iron, carbon steel, stainless steel, or bronze.
The straining screen may be stainless steel or brass.
Available in different mesh sizes depending on the level of filtration required.
Equipped with a drain plug or blow-off connection for removing debris without disassembling.

Applications

  • Water treatment plants
  • Steam gas pipelines
  • Chemical processing
  • HVAC systems
  • Food & beverage industries
  • Industrial piping systems

Advantages:

  • Compact and space-saving design.
  • Easy to install in horizontal or vertical pipelines.
  • Simple maintenance and cleaning.
  • Cost-effective for general filtration needs.
