MEP Supports

MEP Supports (Mechanical, Electrical, and Plumbing supports) are structural elements used to hold, anchor, and stabilize MEP systems in buildings. They ensure that pipes, ducts, conduits, and cable trays are safely and effectively mounted, avoiding mechanical stress and meeting building code requirements.

u-clamps-both-side-thread

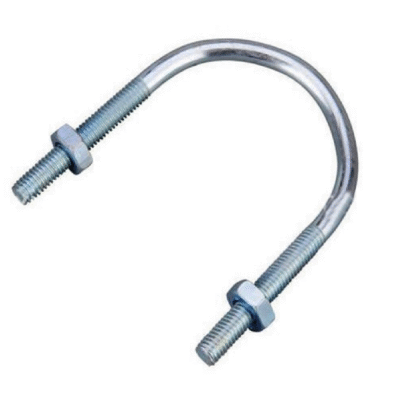

U Clamp:

A U Clamp is a type of mechanical fastener or bracket shaped like the letter “U”, commonly used to hold or secure cylindrical objects such as pipes, tubes, or rods to a surface or structure.

U-shaped design: Two parallel arms with a curved base.
Materials: Often made of steel, stainless steel, plastic, or rubber-coated for insulation or vibration dampening.
Fastening method: Usually secured using bolts, nuts, or screws through holes in the arms.
May include a rubber lining (called a cushioned U clamp or P-clamp) for added grip and to reduce vibration/noise.

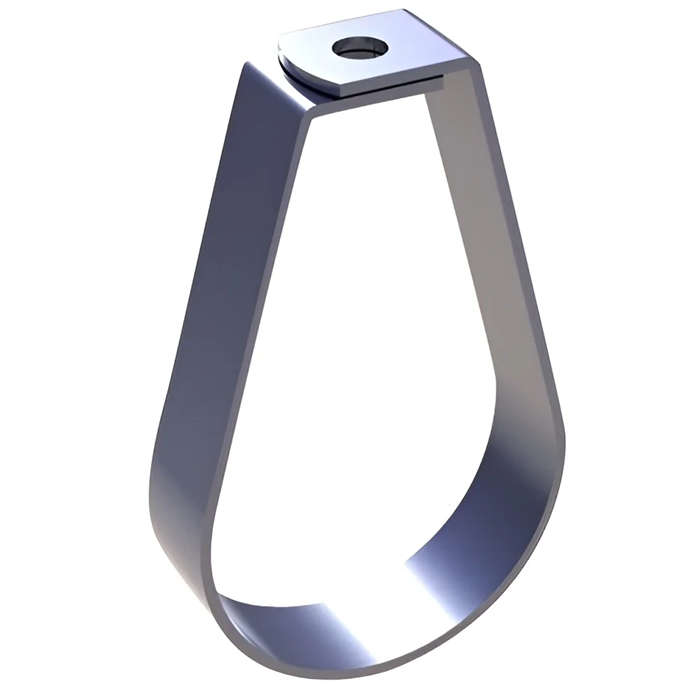

Hanging Clamp

Hang Clamp:

A hang clamp (or hanging clamp) is a type of mechanical device used to support, suspend, or secure pipes, ducts, cables, or other objects from overhead structures like ceilings, beams, or trusses.

Plumbing: To suspend pipes from ceilings or joists.
Electrical: To hold conduit or cable trays.
HVAC: To support ductwork.
Pipe hangers – Specifically for plumbing pipes.
Often has a U-shaped or circular design to wrap around the item being supported.
teflon tape-pipe-sealants

Teflon Tape

Teflon tape, also known as PTFE tape (Polytetrafluoroethylene tape) or plumber’s tape, is a non-adhesive tape used to seal pipe threads. It is widely used in plumbing and gas fitting to prevent leaks by creating a tighter seal between threaded pipe joints.

Material: Made of PTFE, which is highly resistant to heat, chemicals, and pressure.
Temperature Resistance: Typically -190°C to +260°C (-310°F to +500°F).
Pressure Rating: Can withstand high pressures, depending on tape grade.
Threaded metal or plastic pipes (e.g., for water, air, gas).
Plumbing connections, air compressors, or fuel systems (with proper grade).

Types of MEP Supports

  • Hangers & Clamps: Suspend piping from ceilings or beams.
  • Shoe Supports: Maintain pipe position while allowing thermal expansion.
  • Rollers & Guides: Enable controlled movement due to thermal expansion/contraction.
  • Trapeze Hangers: Horizontal bars suspended by rods for air ducts.
  • Angle Iron Frames: For heavy or large ducts.
  • Vibration Isolators: Reduce noise and vibration transmission.
  • Brackets & Trapeze: For horizontal runs.
  • Strut Channels (Unistrut): Versatile framing systems for electrical raceways.
  • Wall or Ceiling Anchors: For vertical or suspended mounting.

Common Materials

Mild Steel (MS)
Galvanized Iron (GI)
Stainless Steel
Aluminum
FRP (Fiberglass Reinforced Plastic) – for corrosive environments
