Industrial Valves

Key Functions of Industrial Valves

Flow Control: Regulate the rate of fluid or gas flow.

Shut-off/Isolation: Completely stop or allow flow (on/off).

Pressure Regulation: Maintain or adjust pressure within a system.

Flow Diversion: Redirect flow to different pipelines or systems.

Backflow Prevention: Prevent reverse flow to protect equipment or processes.

Industrial valves are mechanical devices used to control the flow, pressure, and direction of liquids, gases, or slurries within a piping system. They are critical components in industries such as oil and gas, water treatment, chemical processing, power generation, and manufacturing. Valves ensure efficient and safe operation by regulating, directing, or isolating the flow of materials.

Types of Industrial Valves

Gate Valves:

Gate Valves….

Used for on/off control with minimal pressure drop.

Ideal for fully open or fully closed applications, not for throttling.

Common in water, oil, and gas pipelines.

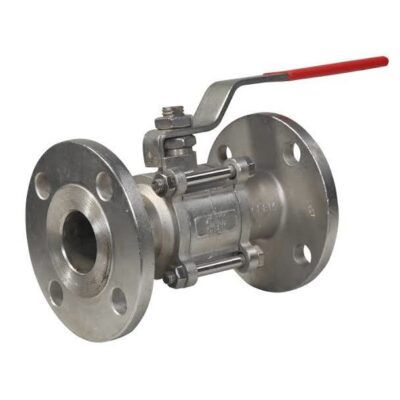

Ball Valves:

Ball Valves…

Use a rotating ball with a bore to control flow.

Quick shut-off, durable, and suitable for high-pressure applications.

Widely used in oil, gas, and chemical industries.

Globe Valves:

Globe Valves…

Designed for throttling and precise flow control.

Higher pressure drop than gate valves.

Common in steam, water, and HVAC systems.

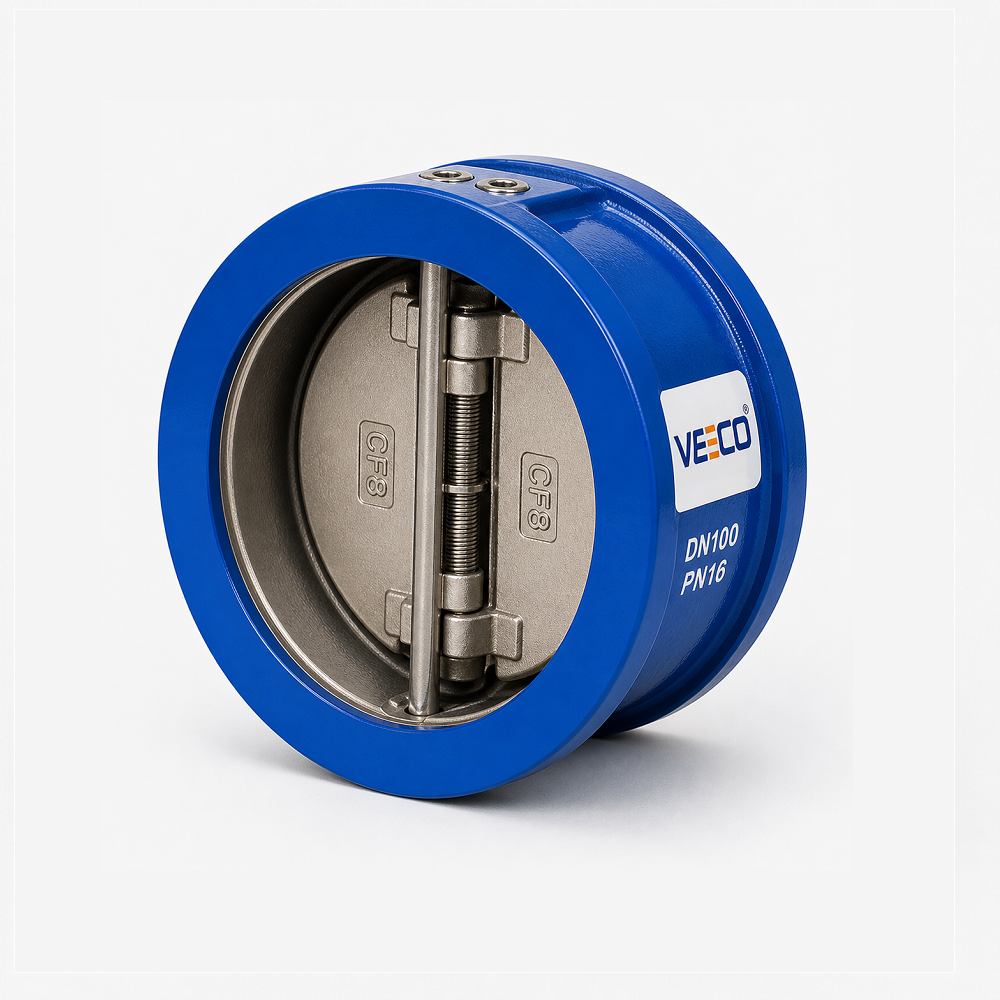

Check Valves:

Check Valves…

Prevent backflow by allowing flow in one direction only.

Used in water treatment, oil, and gas systems to protect pumps and compressors.

In essence, they act as one-way flow regulators, protecting equipment and maintaining system integrity.

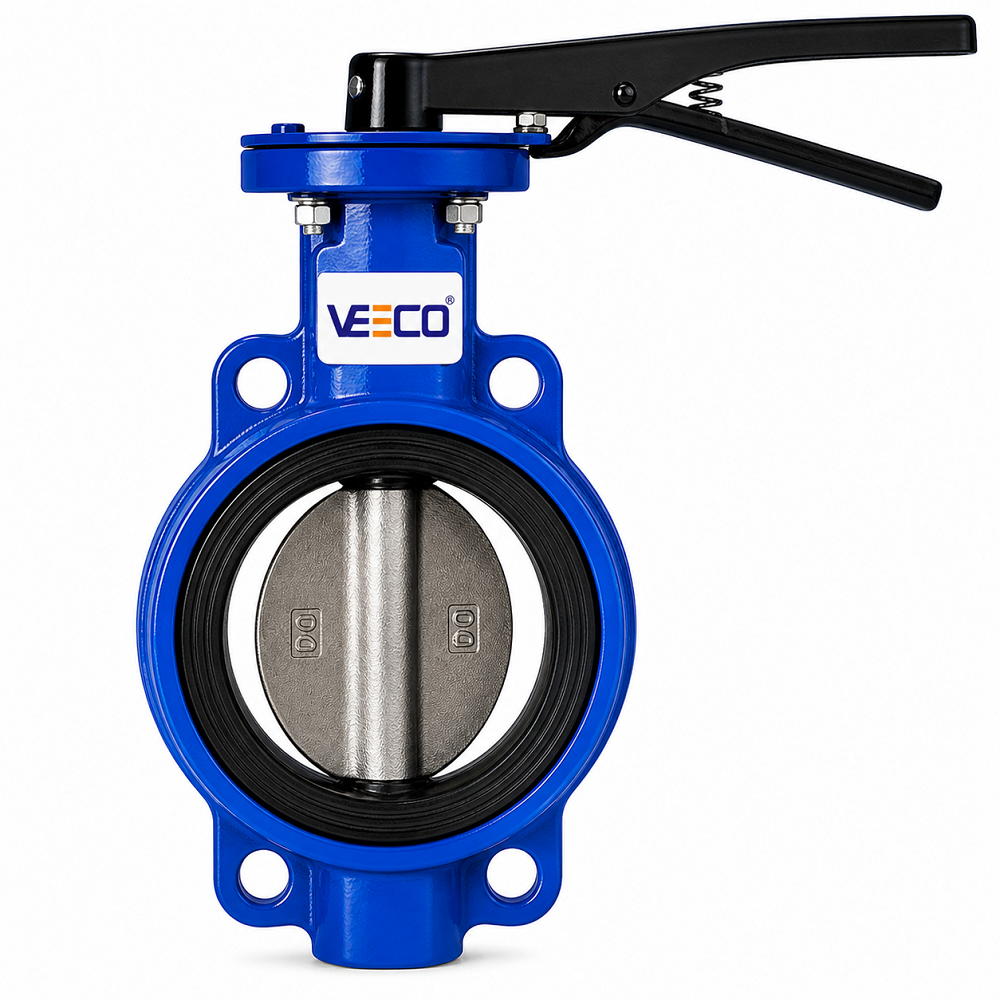

Butterfly Valves:

Butterfly Valves…

Use a rotating disc to regulate or isolate flow.

Compact, cost-effective, and suitable for large-diameter pipes.

Common in water distribution and HVAC systems.

Plug Valves:

Plug Valves…

Use a cylindrical or tapered plug to control flow.

Suitable for slurries, gases, and corrosive fluids.

Often used in chemical and petrochemical industries.

Diaphragm Valves

Diaphragm Valves…

Use a flexible diaphragm to control flow, ideal for corrosive or viscous fluids.

Common in pharmaceutical and food processing industries.

Pressure Relief/Safety Valves:

Safety Valves…

Automatically release excess pressure to protect systems from overpressure.

Critical in boilers, pressure vessels, and chemical plants.

Components of Industrial Valves

Body: The main structure housing internal components.

Actuator: Mechanism (manual, electric, pneumatic, or hydraulic) to operate the valve.

Stem: Connects the actuator to the valve’s internal mechanism.

Disc/Closure Member: Controls flow (e.g., ball, gate, or disc).

Seat: Provides a sealing surface for the closure member.

Bonnet: Covers the valve body, ensuring a tight seal.

Materials

Metals: Stainless steel, carbon steel, brass, or bronze for durability and high-pressure applications.

Alloys: For corrosion resistance in harsh environments (e.g., Monel, Hastelloy).

Plastics: PVC or CPVC for low-pressure, corrosive fluids.

Lined Materials: Teflon or rubber-lined valves for chemical resistance.

Applications

Oil and Gas: Control flow in pipelines, refineries, and offshore platforms.

Water and Wastewater: Manage water distribution, sewage, and treatment processes.

Power Generation: Regulate steam, coolant, or fuel in power plants.

Chemical Processing: Handle corrosive or hazardous fluids.

HVAC: Control heating, cooling, and ventilation systems.

Selection Criteria

Fluid Type: Corrosive, viscous, or abrasive fluids require specific materials.

Pressure and Temperature: Must match valve material and design.

Flow Requirements: Throttling, isolation, or diversion needs.

Size and Connection: Must fit piping system (e.g., flanged, threaded, or welded).

Actuation: Manual, electric, or pneumatic, based on automation needs.

Standards: Compliance with industry standards (e.g., API, ASME, ISO).

Advantages

Enhance system safety and efficiency.

Enable precise control of industrial processes.

Durable and adaptable to various environments

Challenges

High maintenance for complex systems.

Potential for leaks or failures if not properly selected or maintained.

Costly for specialized or large-scale applications.
